Lab Book View
The Lab Book view consists of the Lab Book List and a panel where free text and images can be added.

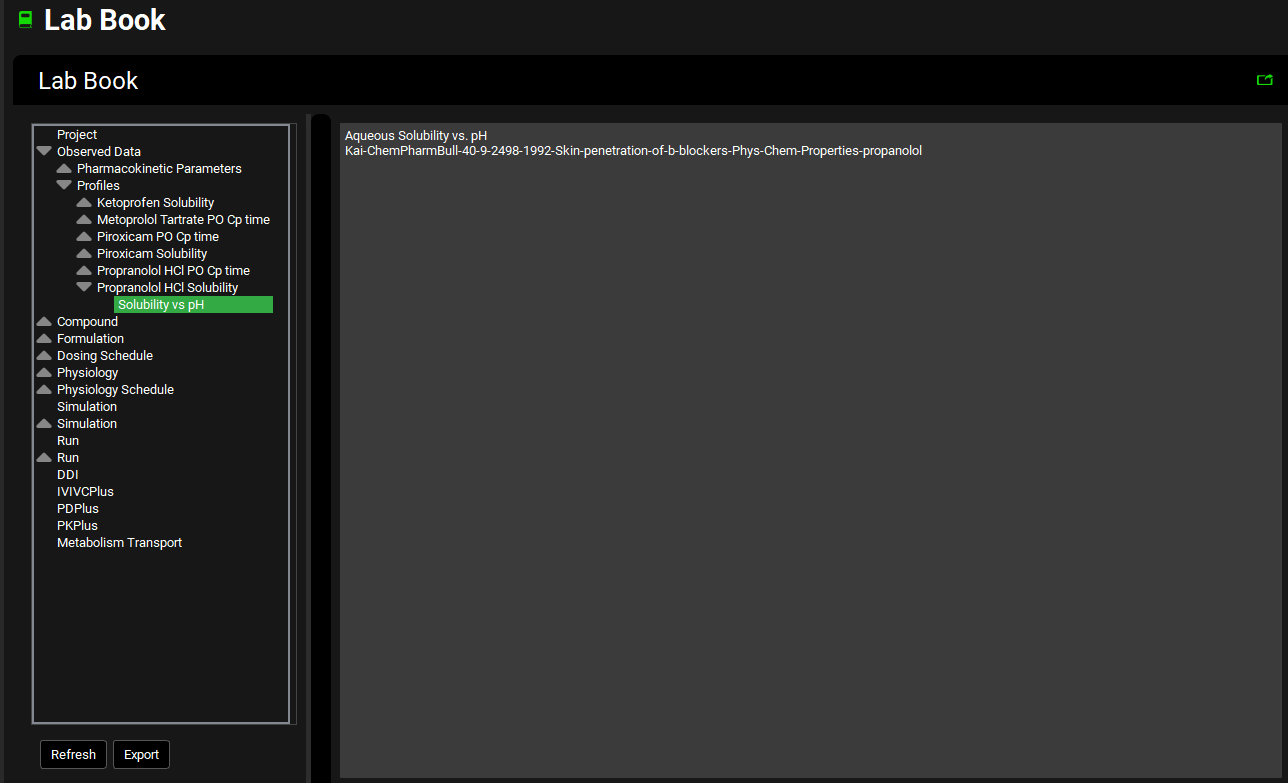

Lab Book view
The Lab Book List consists of Sections that correspond to the views on the navigation pane, each representing a type of asset in the project. Notes can be entered as free text at the level of the asset simply by clicking in the panel on the right-hand side. For example, each compound added to the project has an entry under the Compound section, where notes specific to that compound are saved. Simulations and Runs are entered as they are created and are visible by expanding the appropriate Section.
The Observed Data section is further organized by data type, Pharmacokinetic Parameters or Profiles, with Profiles having an additional layer of organization by group. The specific pharmacokinetic parameters or series assets, respectively, are then given in these subsections. Notes can be entered as free text on the right-hand side for these in the same way as for other assets.
The final items on the Lab Book List are the Modules that correspond to those available on the Modules pane. An ADMET Predictor® module is added when an ADMET Predictor® import is performed and contains information pertaining to that action. Free text, links and images can be added against any of the Modules.
Input/Option | Description |
Lab Book List | A hierarchy tree that lists the assets contained in the project. |
Project | Entry for project-wide notes |
Sections | Correspond to the views on the navigation pane, for example Observed Data. |
Sub-Sections | Correspond to the panels underneath the views on the navigation pane, for example Profiles. Applies to Observed Data only. |
Groups | Groups are listed under each Sub-section, for example Propranolol HCl Solubility. Applies to Observed Data only. |
Assets | The lowest level of the list, for example Propranolol HCl Solubility. Free text can be entered against Assets by clicking in the panel on the right-hand side. |
Simulation | The names of all simulations in the project are listed as assets under Simulation– free text can be entered against the simulation name. |
Run | The names of all runs in the project are listed as assets under Run– free text can be entered against the run name. |
Modules | Correspond to the modules available on the Modules pane. An ADMET Predictor® module is added when an AP import is performed and contains information pertaining to that action. Free text can be added against any of the Modules. |
Refresh | A button that triggers a refresh of the Lab Book Assets. |
Export | A button that exports the Lab Book to a PDF or an HTML. When the button is clicked, a Windows Explorer window opens allowing the file name to be entered and the file location to be selected. Clicking Save generates the file. |
